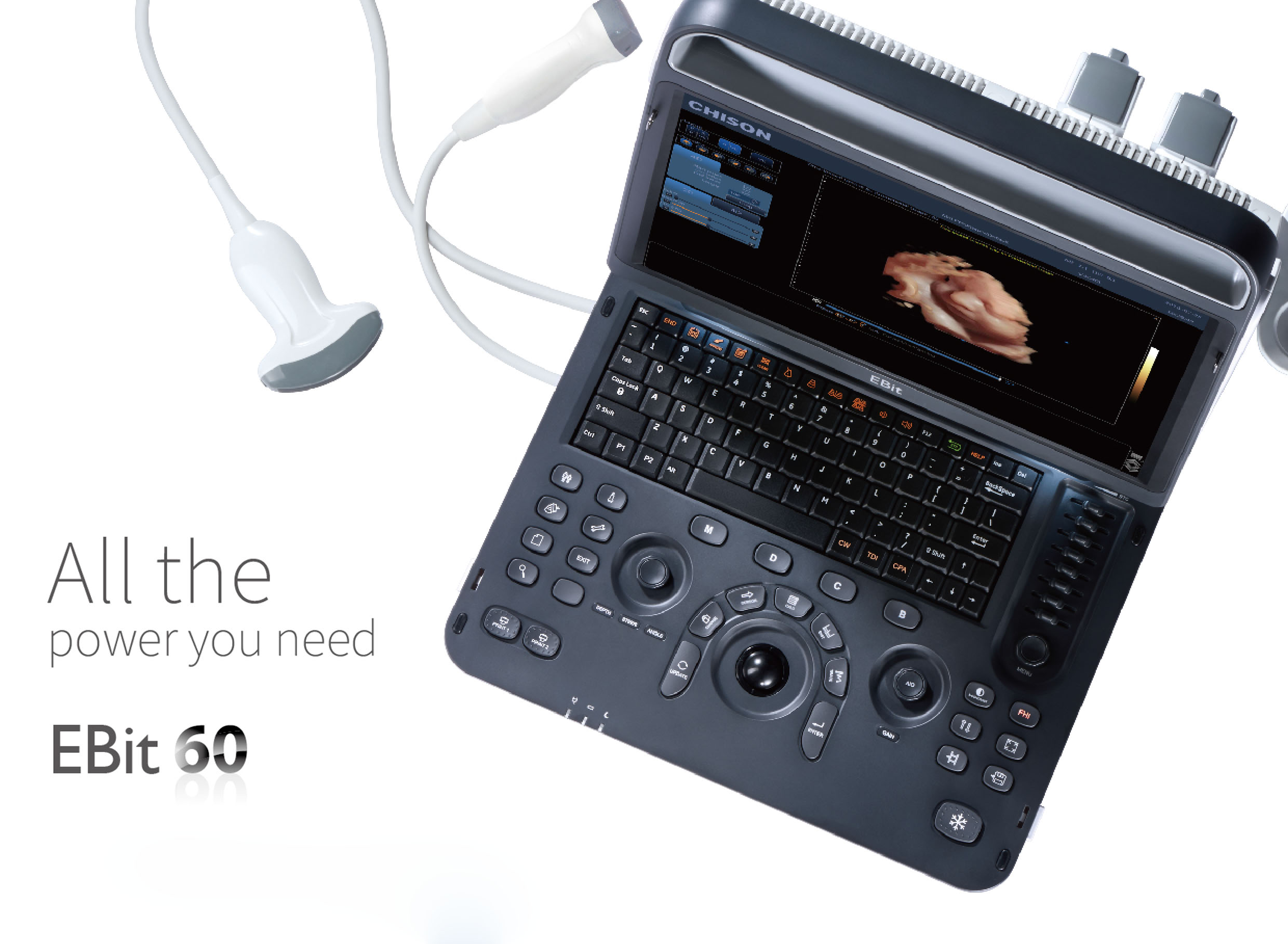

Laptop Ultrasound Machine CHISON EBit 60 4D Probe Siterite Color Doppler Medical Instrument cardiac ultrasound machine

Short Description:


Product Detail

Product Tags

Overview
Essential details
Place of Origin:
China
Brand Name:
CHISON
Model Number:
EBit 60
Power Source:
Electric
Warranty:
2 years
After-sale Service:
Online technical support
Material:
Acrylic, Metal, Plastic
Shelf Life:
2 years
Quality Certification:
ce
Instrument classification:
Class II
Safety standard:
GB/T18830-2009
Product name:
CHISON EBit 60 Ultrasound System
Application:
Abdomen/Cardiac/Cavity/OB-GYN/Small parts
Gray scale:
256 levels
Scanning depth:
240mm Max
Probe frequency:
2.5MHz-18.0MHz
Display:
15 inch LED Screen
Language:
6 Languages
Removable battery:
120 mins in active mode
Archives management:
Patient information management, images record, exam report.
Power supply:
AC 100V-240V, 50Hz-60Hz
Product Description

Laptop Ultrasound Machine CHISON EBit 60 4D Probe Siterite Color Doppler Medical Instrument

Image Gallery
Product Application

Why Choose Chison EBit 60?

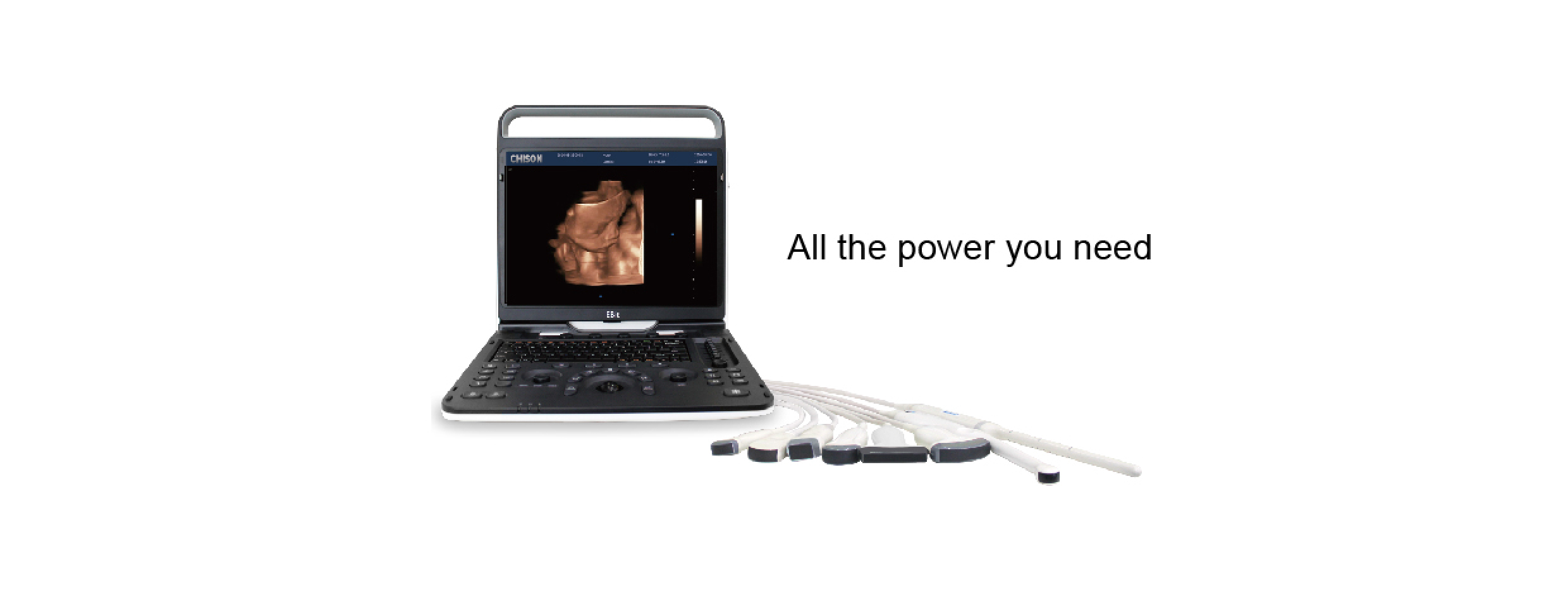

The EBit provides all the power you need for today´s challenging clinical environment, yet remain ultra-portable, ultra-affordable. With it´s cutting-edge imaging technologies, precise and intuitive workflow, ergonomic and eco-friendly design, versatile transducers for all applications from top to toe, we firmly believe the EBit to be the very best portable ultrasound in its class today.

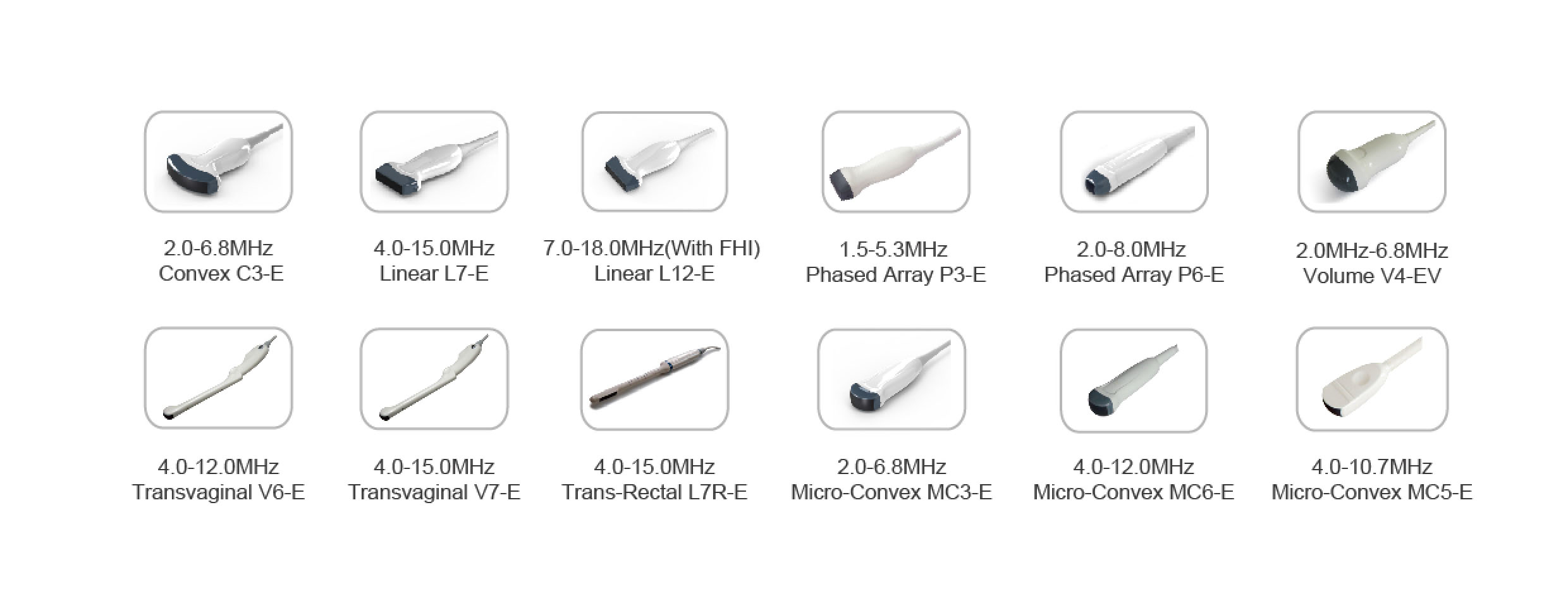

Multiple Probes For You to Choose From
Specification
Imaging technologies
Multiple Compound Imaging, SRA (Speckle Reduction Algorithm),FHI, X-contrast,Q-beam,Q-flow
Display modes
B, 2B, 4B, B/M, B/BC, CFM, PW, Power Doppler/Directional PD, Instant Triplex, Duplex, Trapezoidal, Chroma B&M&PW
Gray Scale
256 levels
Scanning depth
240mm Max
Probe frequency
2.5MHz-18.0MHz
Cine loop
256 frames
Zoom
4 steps
Software packages
Dedicated measurement package: General, OB/GYN, URO, Cardiac, Vascular, small parts
Archives management
Patient information management, images record, exam report.
Documentation
Full screen documentation, hospital name, patient name, date/tim
Power supply
AC 100V-240V, 50Hz-60Hz
Standard configuration
Main unit, 2 probe connectors, 3 USB ports, VGA port, Video port, LAN port, Fully screen display mode, built-in batery
Product Features
Light weight around 7.5 Kg (16.5 lbs)

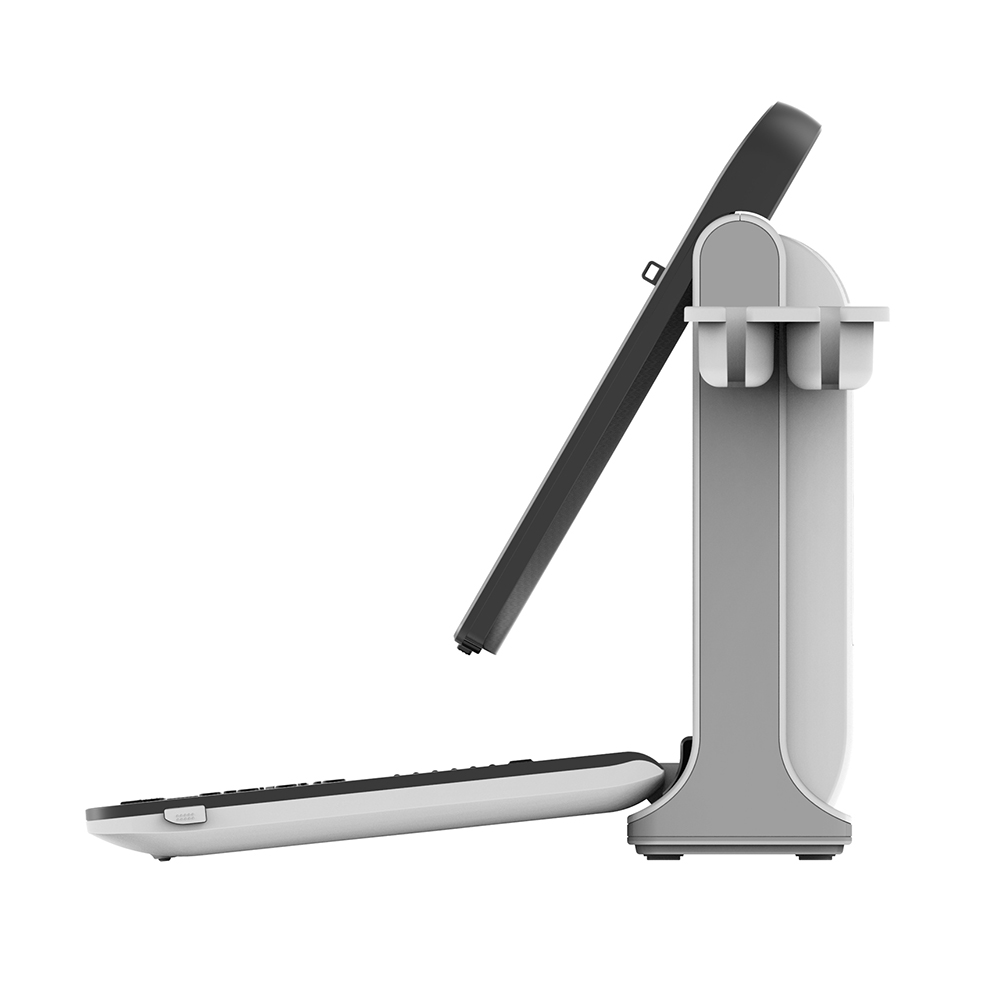

Wide-viewing angle 15'' LED (0°-30°tilted)
Removable battery, 120 minutes in active mode
Dual transducer ports (Built-in)
Probe holders
Ports: USB, LAN, VGA, DVI, Video, Remote

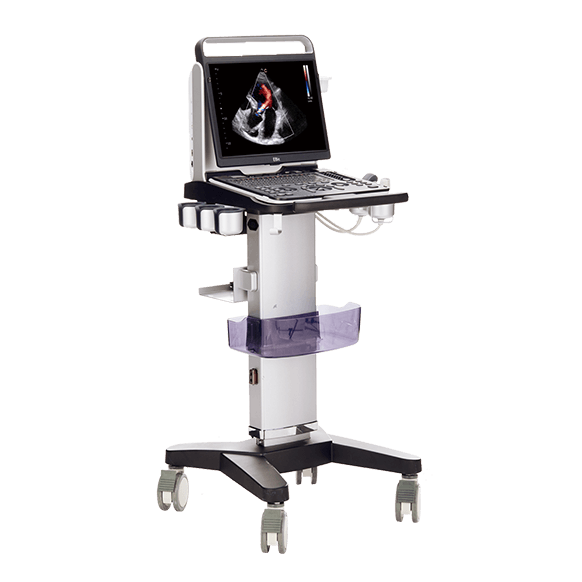

Ergonomic trolley (accessory box, printer socket & probe holders, optional: theft-proof lock)
Short-cut key function
Multi-language
Advanced Technologies

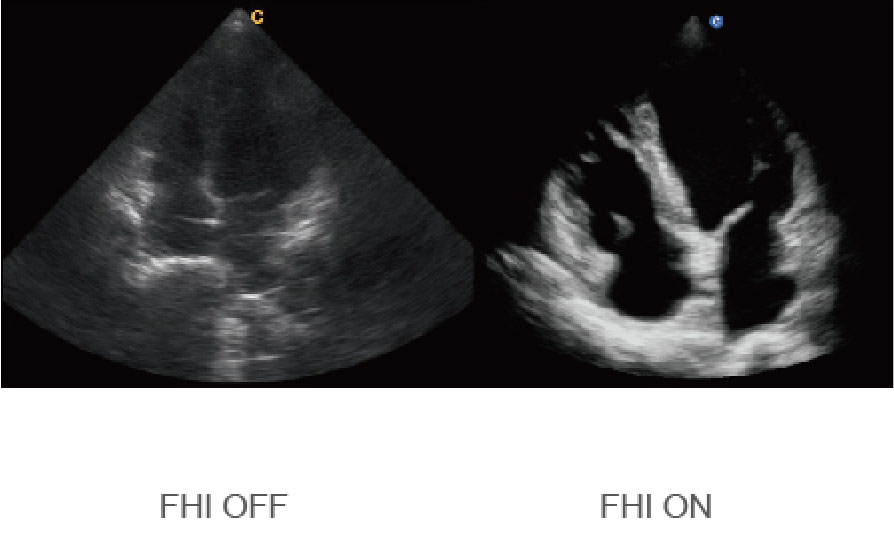

FHI
FHI is an innovative harmonic imaging technology that uses multiple transmission and receiving methods based on the patients'size and weight. This allows the EBit to maintain image resolution when imaging larger patients.Better than traditional THI and phased harmonic which compromise the penetration.Chison's FHI technology greatly improves diagnostic abilities and clinical confidence in larger, difficult-to-image patients.

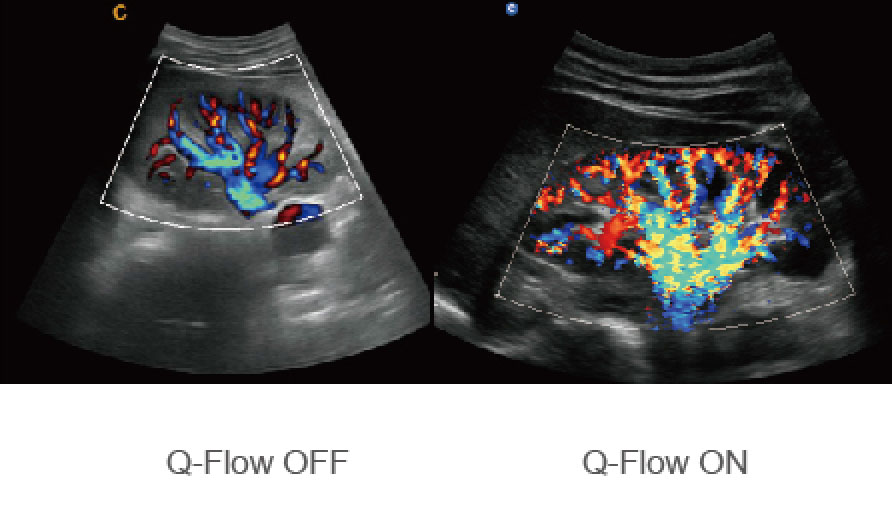

Q-flow
This adaptive color detection technology can automatically adjust the assessment of color signal and noise according to different tissues.
As a result, color sensitivity of low-velocity flow is significantly enhanced.

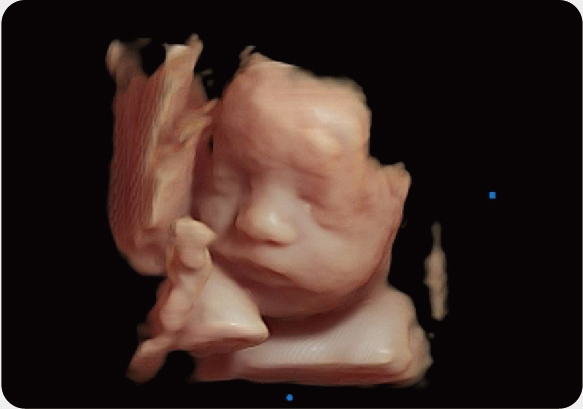

Virtual HD

The latest innovation in real-time 4D with powerful imaging engine
Greatly strengthen the bond between mother and fetus.
With moveable virtual light source.

Elastography

Elastography displays tissue stiffness in real time to provide doctors with additional diagnostic information when scanning organs like liver and breast.
Q-beam
Compared to the traditional dual-beam former on most ultrasound machines, the EBit 30 uses quad-beam technology for ultrasoundsignal receiving.Doubles the volume of signals received from traditional methods, increasing image resolution and generating more accurate images.Produces higher frame rates, ensuring better diagnostic confidence and efficiency , especially for moving organs.
X-contrast
The EBit 60 allows one-touch user-adjusted contrast resolution based upon differences in tissue density.
Enhance, Normal, and Suppress settings increase or decrease contrast resolution, based on the tissue type and user preference.

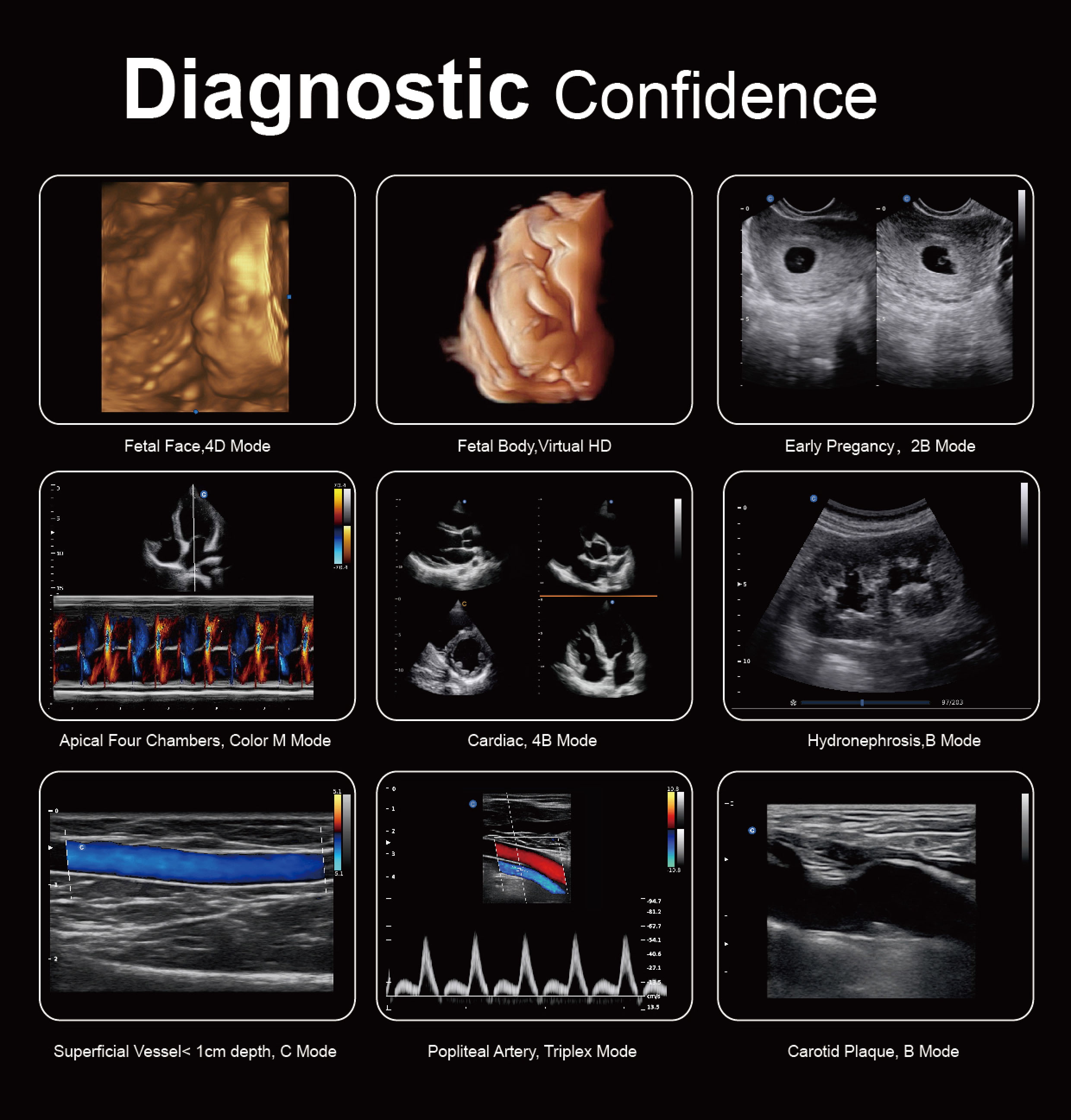

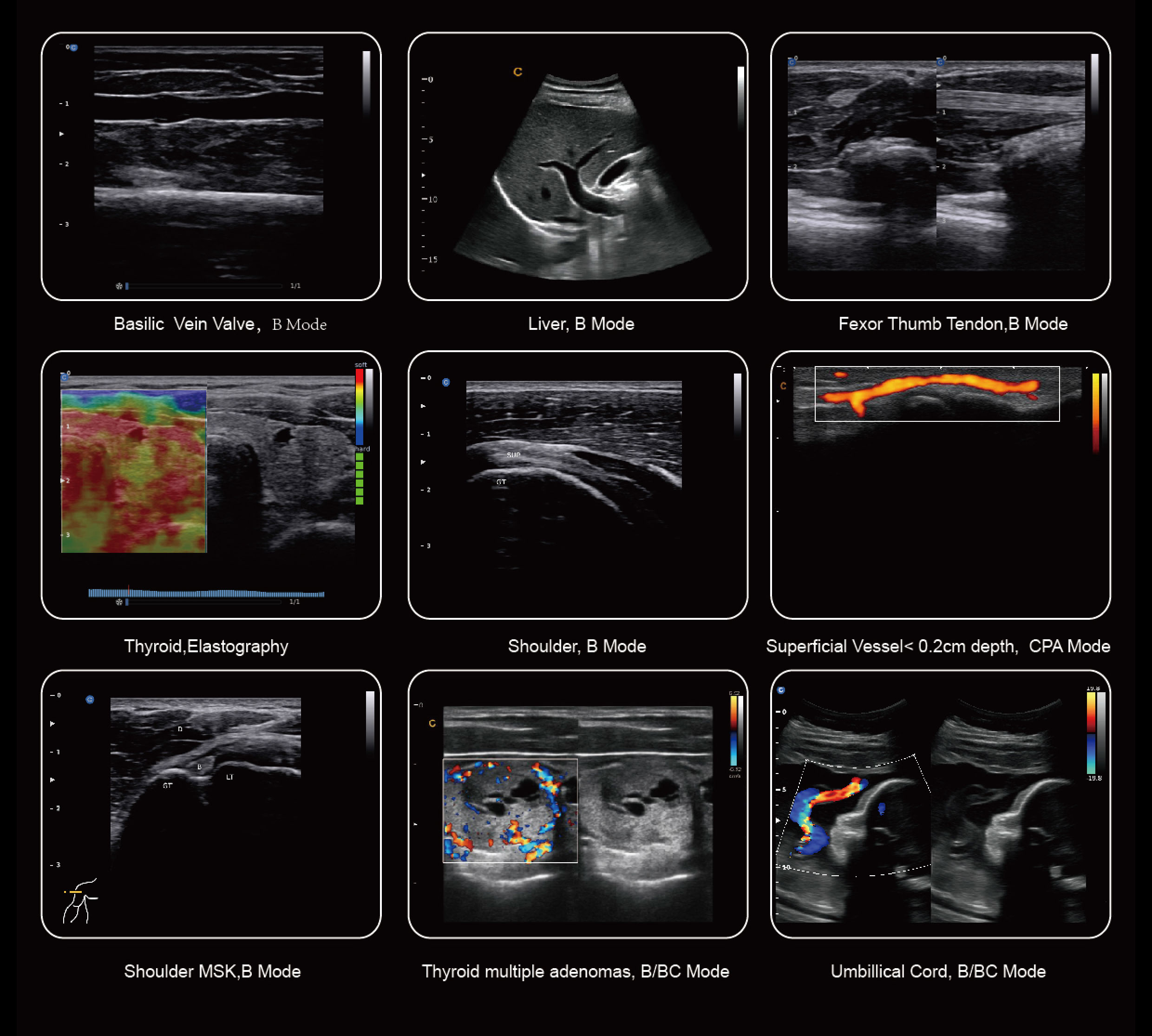

Clinical Pictures
