CHISON EBit 30 Medical Ultrasound Instruments with Optional Probes for Clinical Diagnosis

Short Description:

Send email to us

Product Detail

Product Tags

Overview

Essential details

Place of Origin:

China

Brand Name:

CHISON

Model Number:

EBit30

Power Source:

Electric

Warranty:

2 years

After-sale Service:

Online technical support

Material:

Metal, Plastic

Shelf Life:

2 years

Quality Certification:

Instrument classification:

Class II

Safety standard:

None

Product name:

CHISON EBit Portable Ultrasound Machine

Display mode:

B, 4B, C, CW, HIP Graf, Virtual HD

Optional Probes:

convex, linear, transvaginal, micro-convex, volume

Display:

15 Inch LED Screen

Independent angle:

0°-30° tilted

Transducer port:

Dual

N.W:

7.5KG

Standard Probe:

Convex+Linear

CHISON EBit 30 Medical Ultrasound Equipment with Optional Probes for Clinical Diagnosis

Specification

item	value
Place of Origin	China
	CHISON
	EBit30
Power Source	Electric
Warranty	2 years
After-sale Service	Online technical support
Product name	CHISON EBit Portable Ultrasound Machine
Display mode	B, 4B, C, CW, HIP Graf, Virtual HD
Optional Probes	convex, linear, transvaginal, micro-convex, volume
Display	15 Inch LED Screen
Independent angle	0°-30° tilted
Transducer port	Dual
N.W	7.5KG
Standard Probe	Convex+Linear
Optional Probes	Convex C3-E: 2.0-6.8 MHz Linear L7-E: 4.0-15.0 MHz Linear L12-E: 7.0-18 MHz Linear L7W-E: 4.0-15.0 MHz Transvaginal V6-E: 4.0-12.0 MHz Transvaginal V7-E: 4.0-15.0 MHz Trans-Rectal L7R-E: 4.0-15.0 MHz Micro-Convex MC3-E: 2.0-6.8 MHz Micro-Convex MC5-E: 4.0-10.7 MHz Micro-Convex MC6-E: 4.0-12.0 MHz Volume V4-EV: 2.0-6.8 MHz

Application

Convex: Abdomen, Obstetrics, Urology, Gynecology

Linear: Small Parts, Vessels, MSK, Nerves, Breast

Transviginal: Obstetric, Urology, Gynecology

Product Features

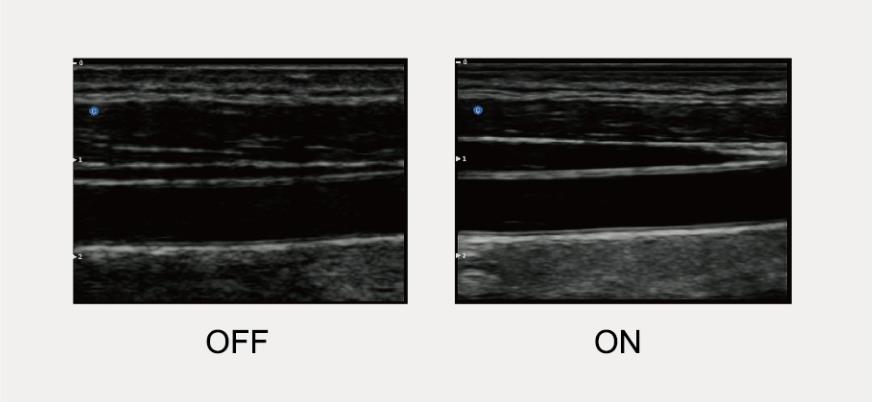

FHI

●FHI is an innovative harmonic imaging technology that user multiple transmission and receiving methods based on the patients' size and weight. This allows the EBit to maintain image resolution when imaging larger patients.●Better than traditional THI and phased harmonic which compromise the penetration .●Chison's FHI technology greatly improves diagnostic abilities and clinical confidence in larger, difficult-to-image patients.

Q-image

●These innovative algorithms have strengthened the image enhancement results significantly.●Advanced chipset is used to ensure fast frame rate.

Q-beam

●Compared to the traditional dual-beam former on most ultrasound machines, the EBit 30 uses quad-beam technology for ultrasound signal receiving.●Doubles the volume of signals received from traditional methods, increasing image resolution and generating more accurate images.

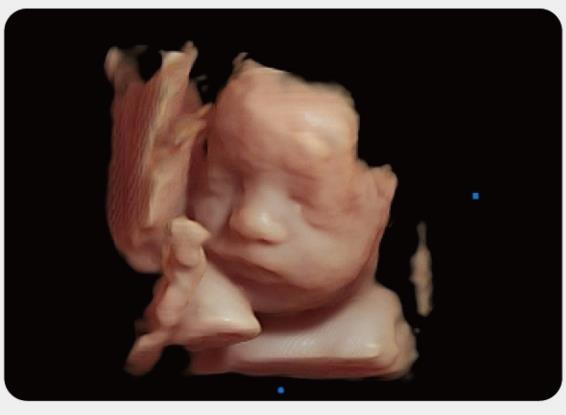

Virtual HD

●The latest innovation in real-time 4D withpowerful imaging engine.●Greatly strengthen the bond between mother and fetus.●With moveable virtual light source.

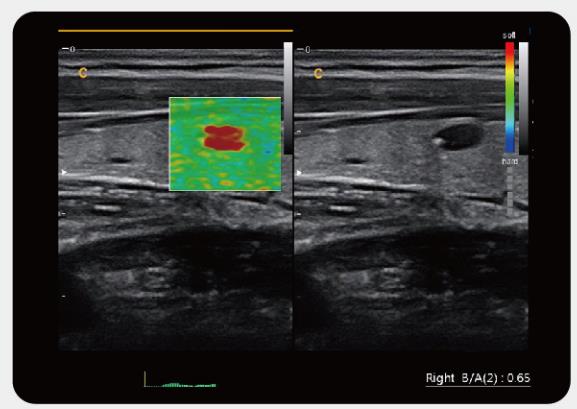

Elastography

Elastography displays tissue stiffness in real time to provide doctors with additional diagnostic information when scanning organs like liver and breast.

Optional Probes
